MOTU M6 6×4 USB-C Audio Interface
Introducing the M6 Four mic inputs with best in class audio quality, speed, and metering
BEST IN CLASS Audio Quality
Equipped with the same ESS Sabre32 Ultra™ DAC Technology found in audio interfaces costing thousands, the M6 delivers an astonishing 120 dB Dynamic Range on its main outputs. ESS converters also drive the headphone outputs, which rivals dedicated headphone amplifiers costing hundreds. Ultra-clean preamp circuits produce a measured -129 dBu EIN on the mic inputs. Capture and monitor your audio with pristine clarity.
ESS Sabre32 Ultra™ DAC Technology for superb analog sound
The same converter technology used in audio interfaces costing thousands
Measured 120 dB dynamic range on outputs
Measured -129 dBu EIN on mic inputs
ESS-driven headphone outputs
BEST IN CLASS Speed
The M6 provides best-in-class speed for monitoring live inputs (mic, guitar or keyboard) through your computer, thanks to MOTU’s expertly engineered USB drivers, which deliver class-leading, ultra-low 2.5 ms Round Trip Latency (at 96 kHz with a 32 sample buffer).
BEST IN CLASS Metering
When recording and mixing, nothing is more critical than achieving optimum levels. The M6 is the only audio interface in its class with a full color LCD featuring clear, detailed level meters for all inputs and outputs. Enjoy professional-level volume control and feedback to get your sound just right.
LIVE STREAMING
Loopback
The M6 driver provides convenient loopback channels to your host computer, so you can easily route computer output back to the computer, where you can mix it with up to four mics (and/or guitars) from the M6 in your host software for live streaming or podcasting. Streaming and podcasting has never been easier and better-sounding!
MONITOR SWITCHING
A/B Monitor Switch
The M6 is the only audio interface in its class to offer A/B monitor switching. Connect two pairs of monitors and quickly check your mixes on each pair with the push of a button.
OPTIONAL DC POWER ADAPTER
Stand-alone operation
With the included multi-blade international DC power adapter connected, you can power the M6 when the computer is turned off (or completely disconnected from the M6). This allows you to monitor any live inputs you may have (mics, guitars, keyboards, etc.) without a host computer or iOS device needed.
A tradition of engineering excellence
Decades of award-winning product engineering for hit songs, mega tours, primetime shows and blockbuster movies goes into every MOTU audio interface.
Workstation software, virtual instruments and loops to get you making music right away
Connect the M6 to your Mac or PC and start laying down tracks with the included Performer Lite or Live Lite production software, plus hundreds of loops, one-shots and sounds from industry leaders Big Fish Audio, Lucidsamples and Loopmasters.
M6 Feature Highlights
6-in / 4-out USB audio interface with studio-quality sound
Best-in-class audio quality driven by ESS Sabre32 Ultra™ DAC Technology
Best-in-class speed (ultra-low latency) for host software processing
Best-in-class metering for all inputs/outputs with a full-color LCD
4 x mic/line/hi-Z guitar inputs on combo XLR/TRS
Individual preamp gain and 48V phantom power for each mic input
2 x balanced 1/4-inch line inputs
Hardware (direct) monitoring for all inputs (in mono or stereo)
Monitor mix knob to balance live inputs and computer playback
A/B switch to compare mix output on two sets of studio monitors
Measured -129 dB EIN on mic inputs
4 x balanced, DC-coupled 1/4-inch TRS outputs
Measured 120 dB dynamic range on the 1/4-inch balanced TRS outputs
2 x headphone out (driven by ESS converters) with independent volume control
1 x 3-4 switch for optional headphone monitoring of Line Out 3-4
MIDI in/out (16 channels to/from USB host)
Support for 44.1 to 192 kHz sample rates
USB audio class compliant for plug-and-play operation on Mac (no driver required)
Windows driver with 2.5 ms Round Trip Latency (32 sample buffer at 96 kHz)
Mac driver (optional, for 2.5 ms RTL@32/96 kHz and loopback feature)
iOS compatible (USB audio class compliant)
Driver loopback for capturing host output, live streaming and podcasting
Bus powered USB-C (compatible with USB Type A) with power switch (USB cables included)
Multi-blade international DC power adapter for stand-alone operation without a computer
Rugged metal construction (extruded case, faceplates and knobs)
Workstation software included (MOTU Performer Lite and Ableton Live Lite 11)
100+ instruments (in Performer Lite)
Over 6 GB of included free loops, samples and one-shots from industry leading libraries
Kensington security slot
Two-year warranty
Technical Specifications
Sample rates :44.1, 48, 88.2, 96, 176.4, 192 kHz
Mic/line/guitar : 4 x XLR/TRS “combo jack” mic/line/Hi-Z guitar inputs Independent preamp gain, 48V phantom power and monitor switch for each input
Analog inputs : 2 x 1/4″ line in
Analog outputs: 4 x 1/4″ TRS line out (balanced, DC coupled) 2 x 1/4″ TRS stereo headphone with independent volume
Computer I/O: 1 x USB-C 2.0 audio class compliant Compatible with USB Type A host (*see power below) USB C-to-C and C-to-A cables included
MIDI I/O: 1 x MIDI IN 1 x MIDI OUT 16 MIDI channels to/from computer host
Headphones : 2 x 1/4″ TRS stereo headphone with independent volume 1 x 3-4 switch for optional monitoring of Line Out 3-4
Phantom power : 4 x individual +48V

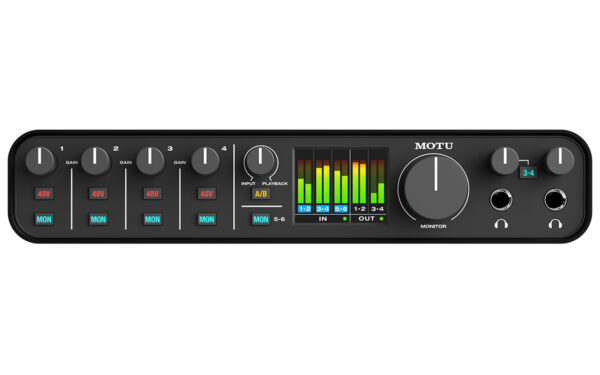

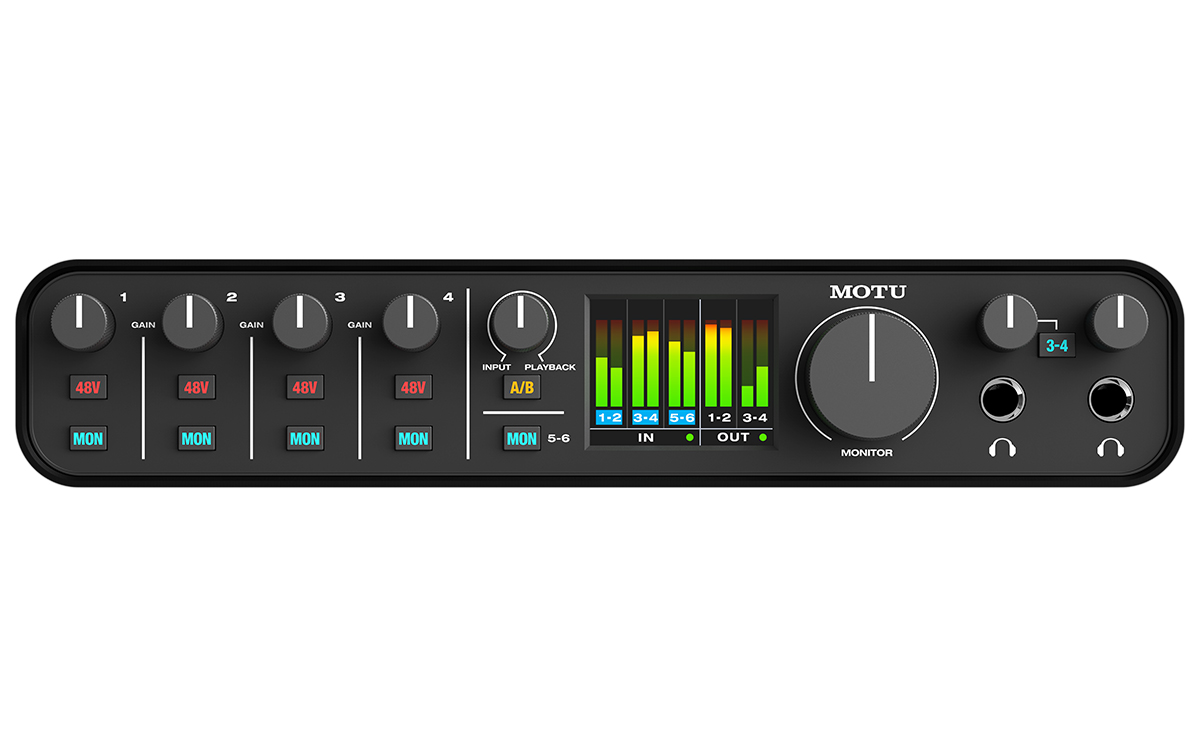

Front panel : 2 x 1/4″ TRS headphone output 1 x potentiometer • monitor vol 2 x potentiometer • phone vol 1 x potentiometer • input monitor mix 4 x potentiometer • mic/line/guitar input gain 11 x switches • (4) 48V, (5) MON, (1) A/B and (1) 3-4 160 x 128 pixel full-colored LCD with input and output level meters
Power: Bus-powered through USB* Optional multi-blade international 15V DC power adapter (included), 1.0A max • tip pos or neg, supports 100-240V power sources (US/Japan, EU, UK, Australia) *USB bus power available with USB-C hosts only. For other hosts, use the included DC power adapter. For iOS devices with a Lightning port, an Apple Lightning to USB3 Camera Adapter is required (sold separately).
Dimensions and weight : (width x depth x height, enclosure only) 9.21 x 4.75 x 1.8 inches 23.4 x 12.0 x 4.57 cm 2.15 lbs / 0.975 kg
System Requirements
Mac System Requirements Intel Core i3 Mac or faster (including Apple silicon Macs) 4 GB RAM; 8 GB or more recommended macOS version 10.11 or later (Optional driver requires 10.13 or later) Available USB port A large hard drive (at least 500 GB for recording)
Windows System Requirements 1 GHz Pentium-based PC compatible or faster 2 GB RAM; 4 GB or more recommended Windows 10 or later (x64 AMD/Intel only) Available USB port A large hard drive (at least 500 GB for recording)
Class-Compliant Support USB audio class compliant for plug-and-play operation on Mac or iOS (no driver required)
Included Software MOTU Performer Lite Ableton Live Lite 11 6 GB of loops and sounds from Big Fish Audio, LucidSamples, Loopmasters and MOTU
