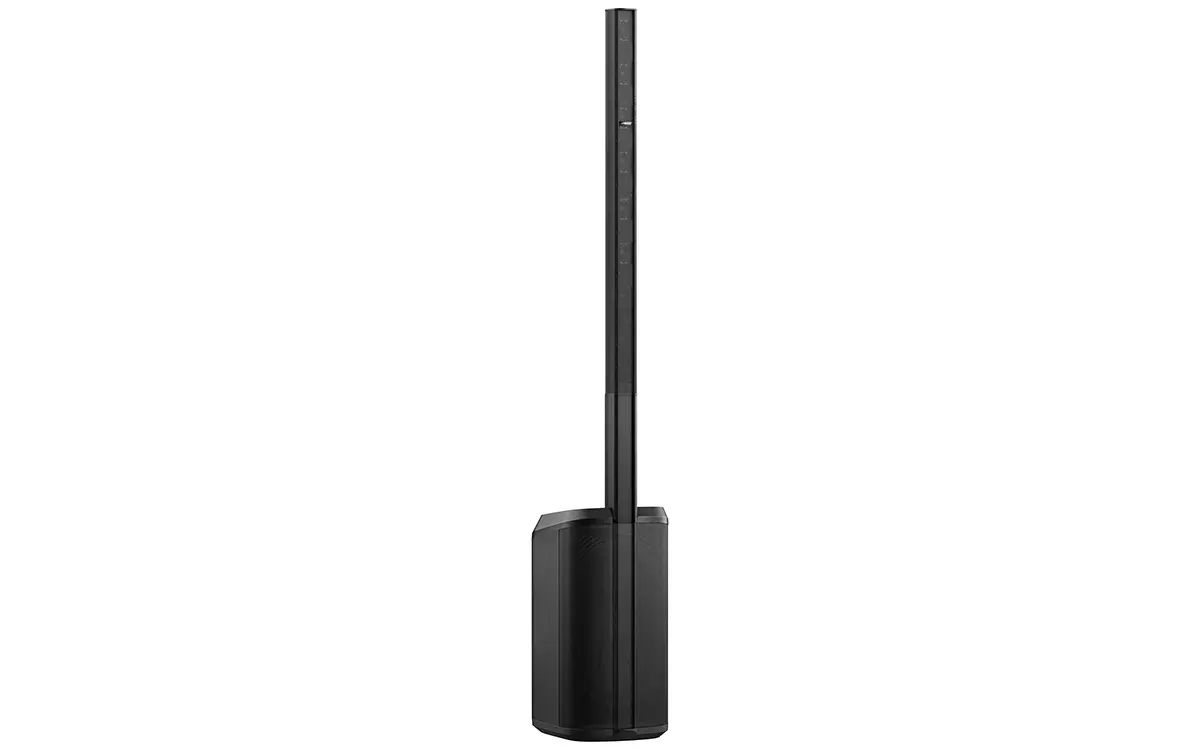

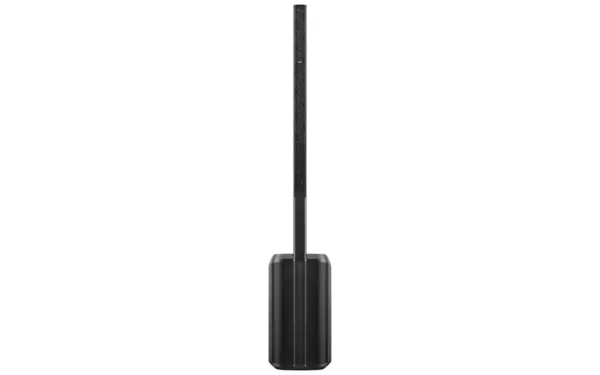

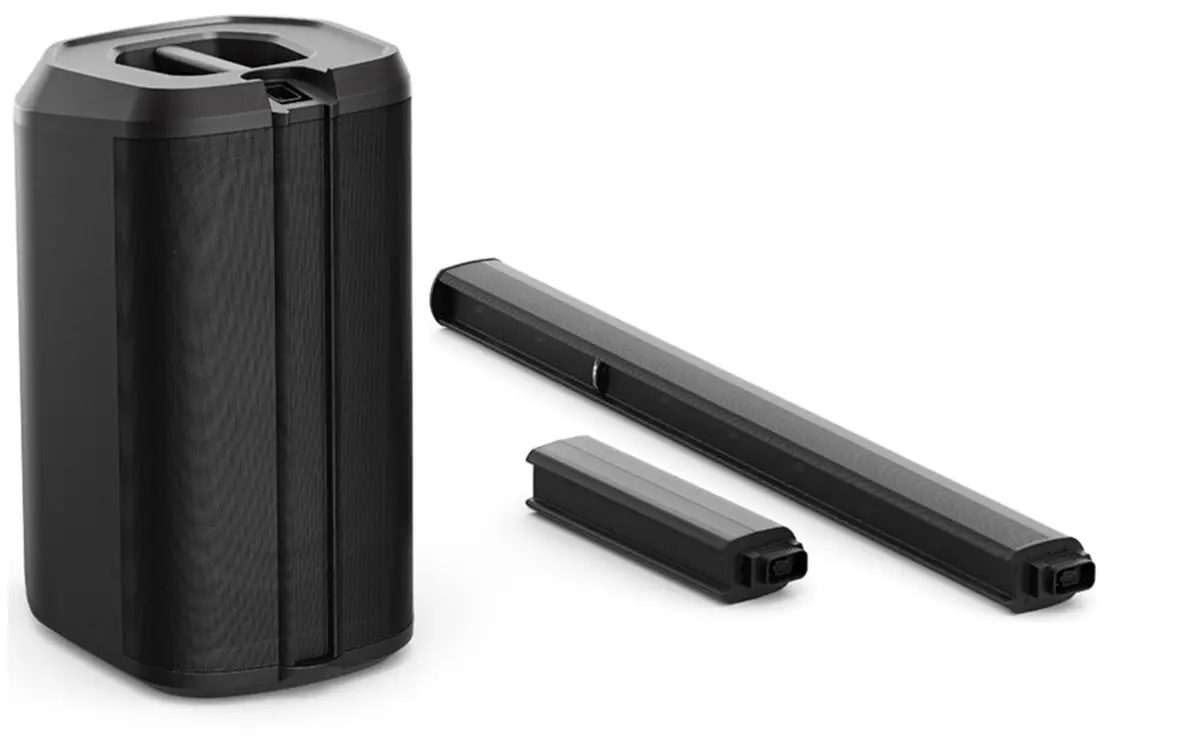

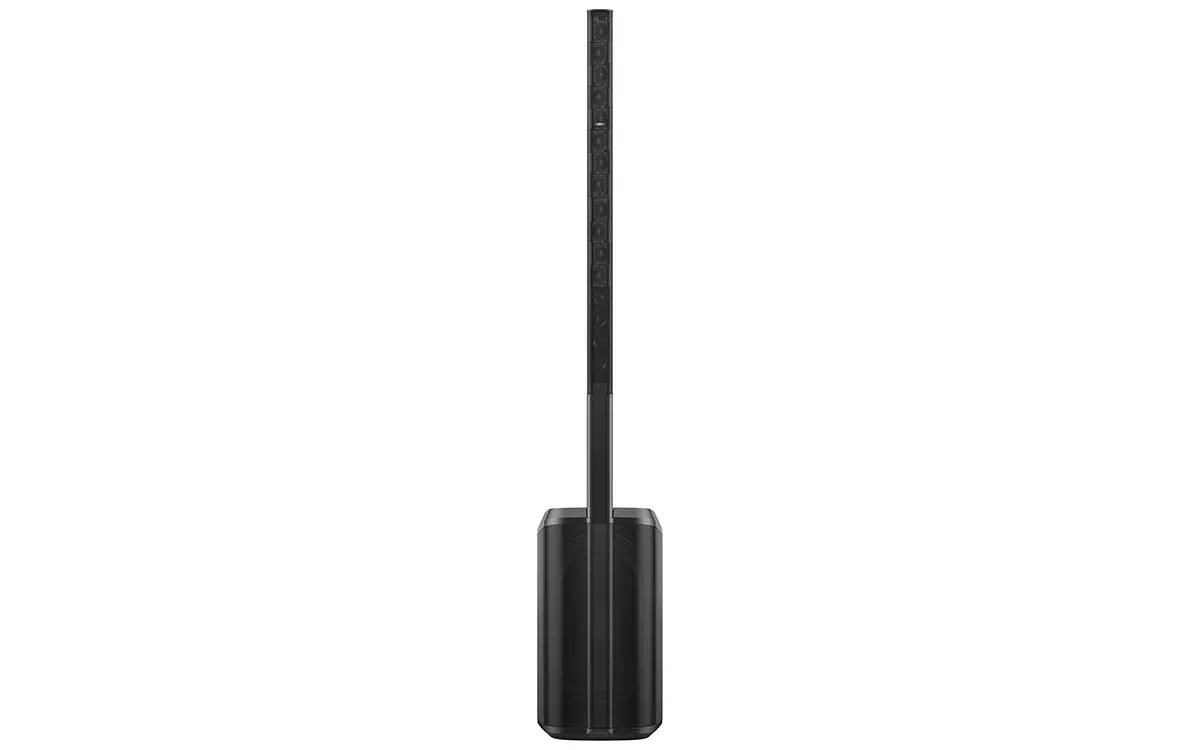

Bose L1 Pro16 Portable Line Array PA System with Subwoofer
Portable PA System with Compact 16 x 2-inch Loudspeaker Line Array, Integrated Subwoofer, Built-in 3-channel Mixer with ToneMatch Presets, and Bluetooth Capability
HIGH OUTPUT AND EXTENDED LOW FREQUENCY A balance of power and portability
The L1 Pro16 portable line array is a streamlined system with high output and extended low frequency. It offers versatile coverage with a J-shaped line array featuring 16 articulated 2” neodymium drivers. This array delivers 180-degree horizontal coverage, tight vertical control on top, wide dispersion on the bottom, to cover audiences whether set up on the floor or an elevated stage, even off to the extreme sides in medium to large venues.
For DJs, singer-songwriters, and small groups, the L1 Pro16 gives you expanded bandwidth and supreme clarity — the power to sound your best and simply perform.
RACETRACK WOOFER : Bass without the bulk
An integrated subwoofer with a unique RaceTrack driver design gives you powerful bass, has an optimized center of gravity, and saves a lot of space. This slim 10”x 18” neodymium driver gives you performance that rivals a conventional 15” woofer without the cumbersome size, freeing up room in your vehicle and on the stage, and making every carry in between — home to car, vehicle to venue — much easier.
BUILT-IN MIXER : Mixer onboard… and on your phone

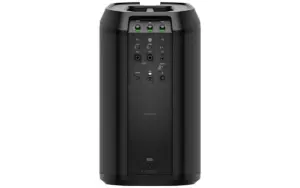

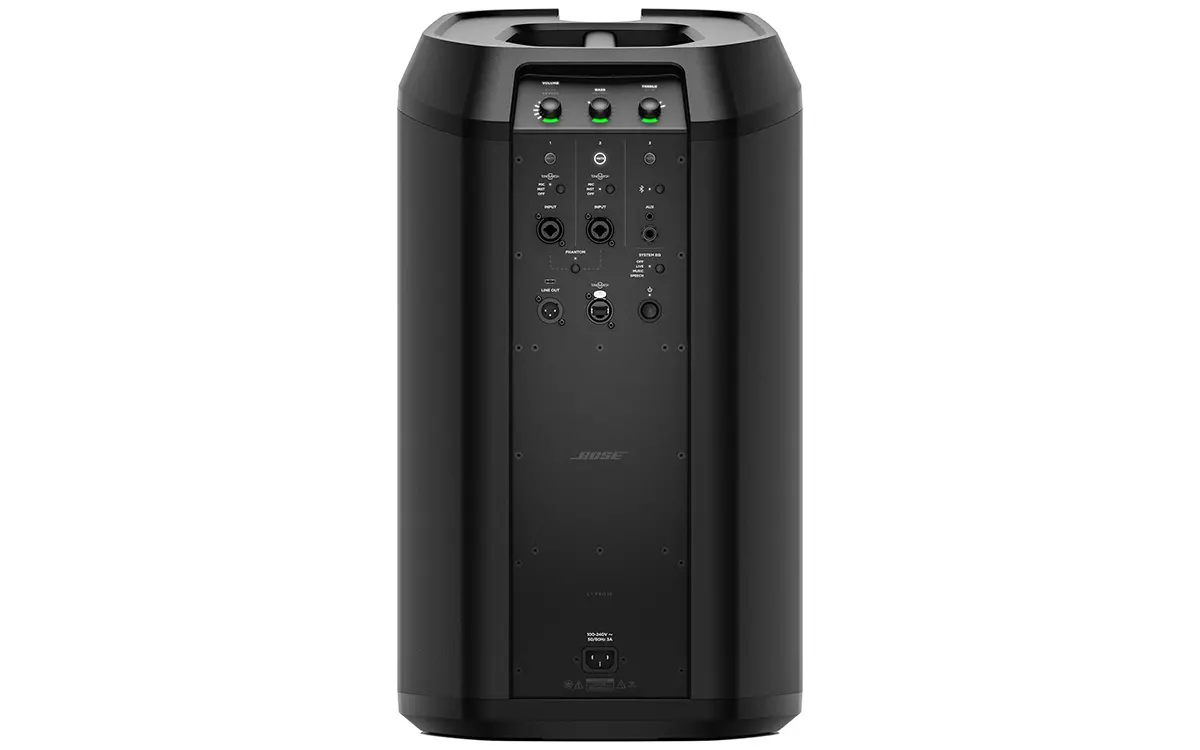

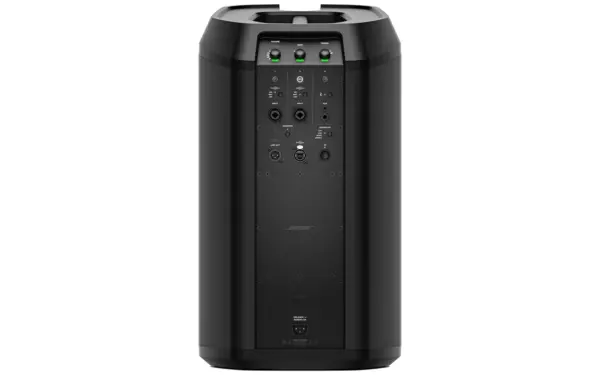

Each L1 Pro system features a built-in mixer, so you can connect various instruments, microphones, and other sources easily. You get two combo XLR-1/4” phantom-powered inputs, 1/4″ and 1/8″ (3.5 mm) aux inputs, plus Bluetooth® streaming capability. Illuminated rotary encoders give you instant access to volume, tone, and reverb settings per channel. Select between optimized system EQ presets for live music, recorded music, and more. And add in even more instruments and other audio sources via dedicated ToneMatch port — one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional). And with the intuitive Bose Music App, you get complete wireless mixer control too…
ALL FOR THAT MOMENT
Premium sound on stage. Practical portability everywhere else. With an L1 Pro16 you can get from parking to performing with ease and from setup to setlist in minutes.The L1 Pro16 gives singer-songwriters and DJs both setup simplicity and supreme clarity
– the power to sound your best and simply perform.
Feature Highlights
180-degree horizontal coverage, 124 db spl peak
Built-in subwoofer with slim racetrack driver
Bluetooth connectivity
16-driver, j-shaped array, versatile coverage pattern
Built-in mixer with tonematch presets
Wireless mixer control via bose music app
A balance of power and portability
System eq presets: live music, recorded music, more
Tonematch port for easy mixer connection
Product Information
Acoustic Performance
Versatile coverage — J-shaped line array featuring 16 articulated 2″ neodymium drivers; 180-degree horizontal coverage, tight vertical control on top, wide dispersion on the bottom to cover audiences whether set up on the floor or an elevated stage, and even off to the extreme sides in medium to large venues.
Coverage
180° H x 0° to -30° V
Low Frequency (-3 dB)
42 Hz
